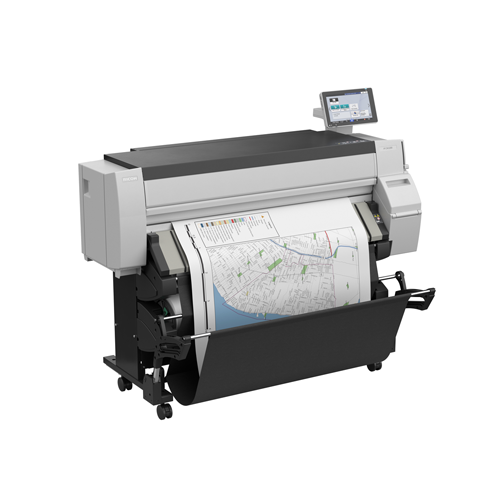

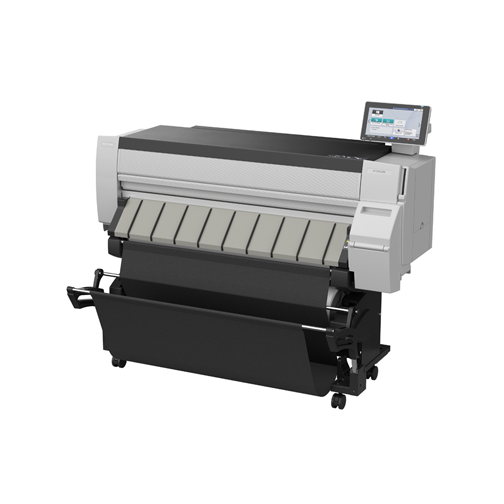

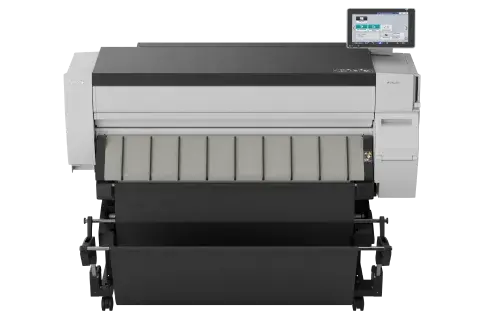

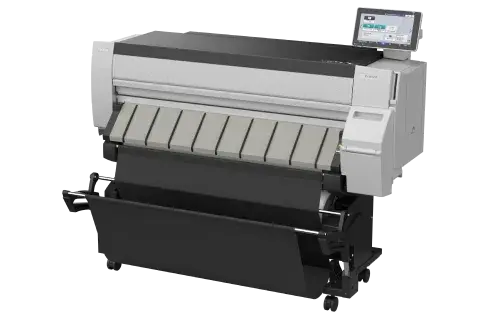

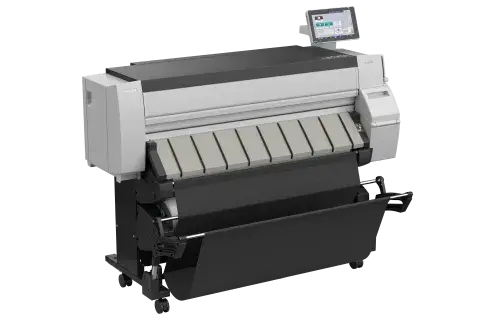

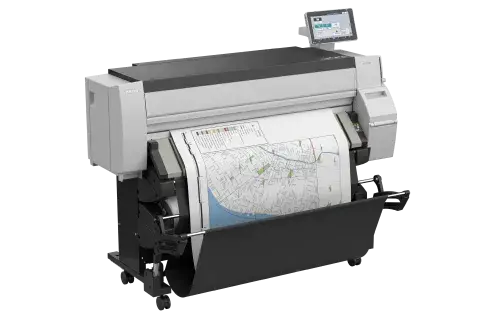

IP CW2200
- Generate colour plans and drawings for outdoor use
- Print long sheet schematics of up to 33 metres in length
- Save time by producing up to 3.8 A1 documents a minute
- Simplify operation with innovative handling features
Easy to use large format printer

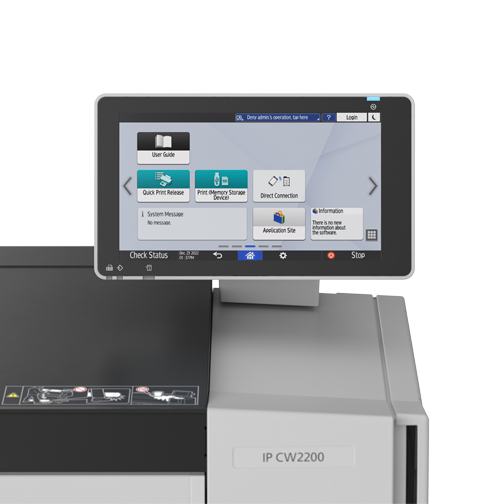

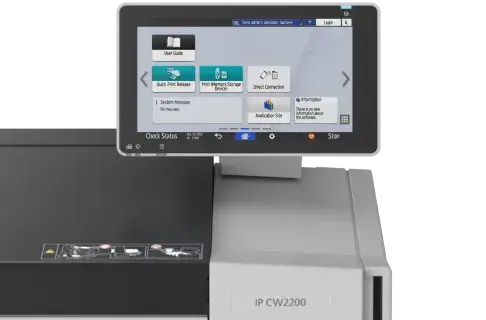

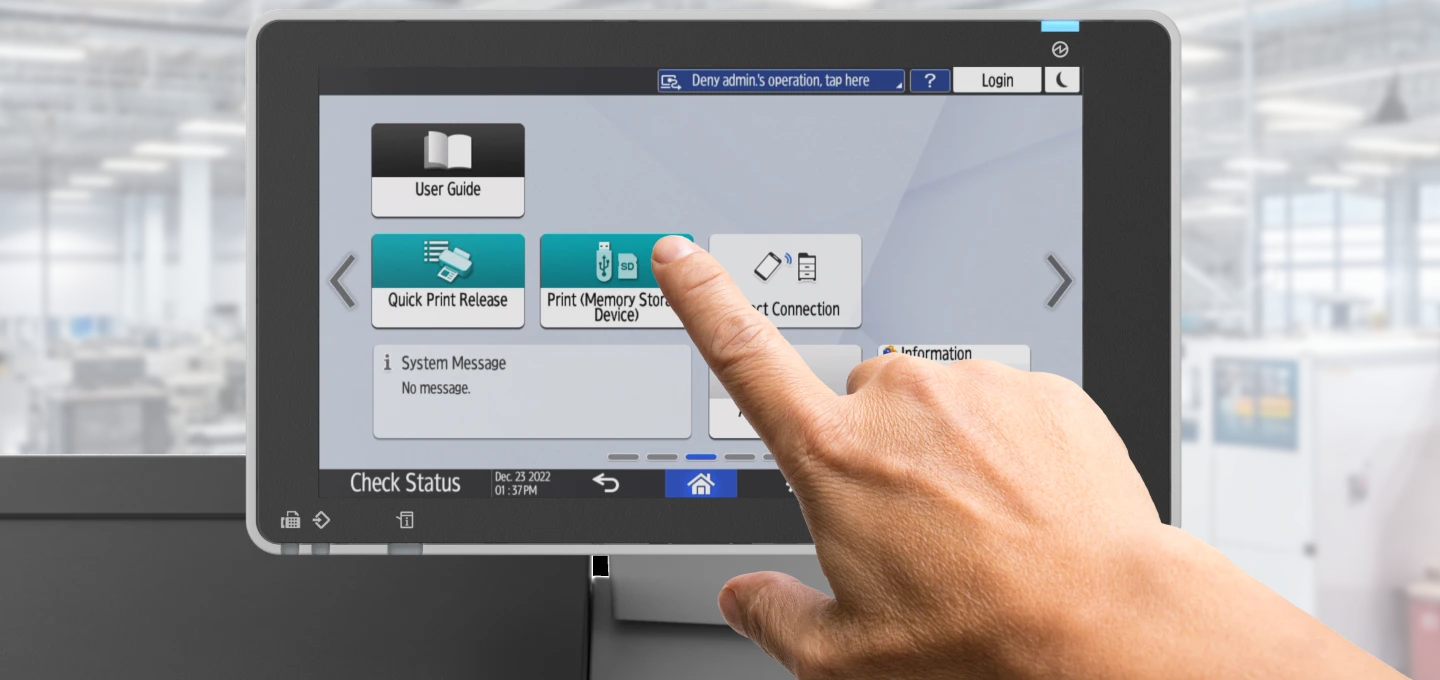

Next generation Controller Panel
The new Smart Operation Panel designed with colourful touch screen, offers an intuitive and easy to user interface. The versatile functionality and fast, simple navigation help to reduce operation error and improve the way you interact with the device.
Enhanced Productivity & easy Operation
Production downtime is key for any business, so thanks to the automatic paper roll setting, we’ve ensured this device requires minimum user attention. Up to 10 sheets of A1 can be stacked on the upper tray and documents up to 33 metres long can be printed continuously, thereby increasing productivity.
Sustainable
Designed for eco-friendly performance, it features low power consumption, energy-saving modes and minimal heat emissions. With quiet operation for a comfortable workspace and auto-off timers to reduce energy use, it helps lower environmental impact. Built with sustainability in mind, it supports responsible resource use while delivering reliable, high quality printing.
Konsoll
Piezo on-demand blekkskriversystem (pigmentbasert blekk)
600 x 600 dpi
4 GB
320 GB
220 - 240 V, 1,9 A (maks), 50/60 Hz
1 384 x 660 x 1 117 mm
100 kg
Integrert
1,6 GHz
A1 LEF: svart-hvitt: 3,8 spm, farge: 2,1 spm, A0 SEF: svart-hvitt: 1,9 spm, farge: 1,1 spm
Prioritert hastighet (tegning): 600 x 300 dpi, Prioritert hastighet: 600 x 300 dpi, Standard: 600 x 600 dpi, Prioritert kvalitet: 600 x 600 dpi, Prioritert kvalitetsmodus kun for bestrøket papir, film (matt) og spesialpapir: 1 200 x 1 200 dpi
Adobe Postscript
Europeiske 136 fonter (PS3)
10/100/1000 base-TX, USB 2.0
Trådløst LAN IEEE 802.11a/g/n
TCP/IP (IPv4, IPv6)
MIB-II (RFC1213), Vertsressurs (RFC1514), Skriver MIB (RFC1759)
Original
Windows 8.1/10 (32/64bit), Windows 11, Server 2012/R2, Server 2016/2019/2022, MacOS 10.14 eller nyere, Citrix XenApp 7.15 LTSR, VirtualApps/Desktops 2012 eller nyere, OES 1.0, 2.0
Ja (JPEG/TIFF/PDF)
Prøveutskrift, Sikker utskrift, Hold utskrift, Lagret utskrift, Lagre og skriv ut, Forhindre uautorisert kopiering, Ensrettet, WSD-skriver, Fargetilpasning, POP, CUD, Utskriftsmedier (JPEG/TIFF/PDF), PDF-direkteutskrift, Blekksparemodus (spareforhold: %), Encrypted Secure Print, Auto Job Promotion, Bonjour Support, Media Direct Print, Barrier-free Color Management Mode, Scheduled Print, Banner Page Print, System Reset Timer, Classification Mode, Emergency Print, Standard MIB, Private MIB, Black Over Print, Tray-Parameter Change from WebImageMonitor, Poster Print
Matevalse maksimalt: 914,4 mm bredde, 33 000 mm lengde, Multiarkmater maksimalt: 914,4 mm bredde, 2 000 mm lengde
Papirrull: 0,068 - 0,2 mm (51 -190 g/m²), Ark: 0,068 - 0,4 mm (51 -220 g/m²)
297 / 364 / 420 / 440 / 490 / 515 / 594 / 610 / 620 / 625 / 660 / 680 / 707 / 728 / 800 / 841 / 880 / 914,4 mm
Bredde: 297 - 914 mm, 11" - 36", Multiarkmater: 1 ark
1 ark (vanlig papir)
160 W
